Getting a Signed Certificate

To connect securely with the Nopan API, clients must authenticate using a valid X.509 client certificate over mTLS. This certificate must be signed by Nopan's certificate authority (CA).

This guide walks you through:

  • Generating a private key
  • Creating a certificate signing request (CSR)
  • Submitting your CSR to Nopan
  • Downloading your signed certificate

Once you have the certificate, you can use it in all authenticated API calls over mTLS.

Installing OpenSSL​

Operating system
Links
Mac
install OpenSSL using brew
Windows
Windows Subsystem for Linux
Verify your OpenSSL version:
  openssl version  # OpenSSL 3.x

Generating a Private Key​

Nopan API supports the following key algorithms:

Algorithm
Key Sizes
RSA
2048, 3072, 4096
ECDSA
256, 384, 521
Generate a private key
openssl ecparam -genkey \
 -name secp384r1 \
 -noout \
 -out client-key.pem
Important

Nopan never requests your private key.

Creating a Certificate‑Signing Request (CSR)​

There are several ways to create a CSR. While Nopan is not prescribing any particular way, below is an example of how it could be done.

openssl req -new -key client-key.pem -out client.csr \
  -subj "/C=NL/ST=North-Holland/L=Amsterdam/O=Your Company Name/OU=API Client/CN=your-organization-id"
Certificate Validity

Certificates issued by Nopan are typically valid for 12 months.

Certificate Rotation

Plan for certificate rotation at least 30 days before expiration.

tip

If you don't specify -subj parameter OpenSSL will prompt for each field individually.

info

Use placeholders only as an example. Substitute your actual organisation details before running the command.

Field
Required
Description
C
Required
Country code (ISO 3166-1 alpha-2)
O
Required
Your company name
CN
Required
Organization id assigned to you by Nopan
ST
Optional
State or province
L
Optional
City or locality
OU
Optional
Department or environment label

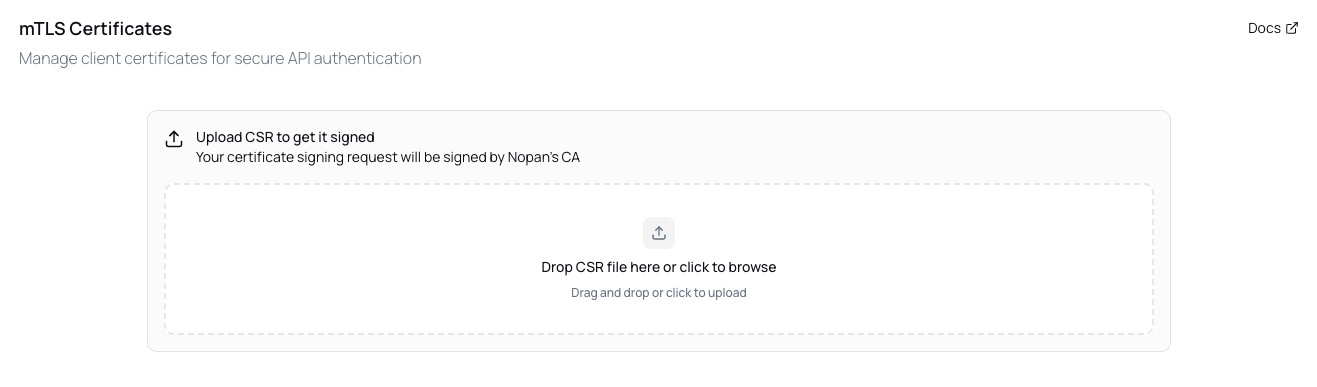

Submitting the CSR to Nopan​

Send client.csr via email to support@nopan.com and include your organization ID, company name, and technical contact.

Important

Send only the .csr file.

NEVER send client-key.pem.

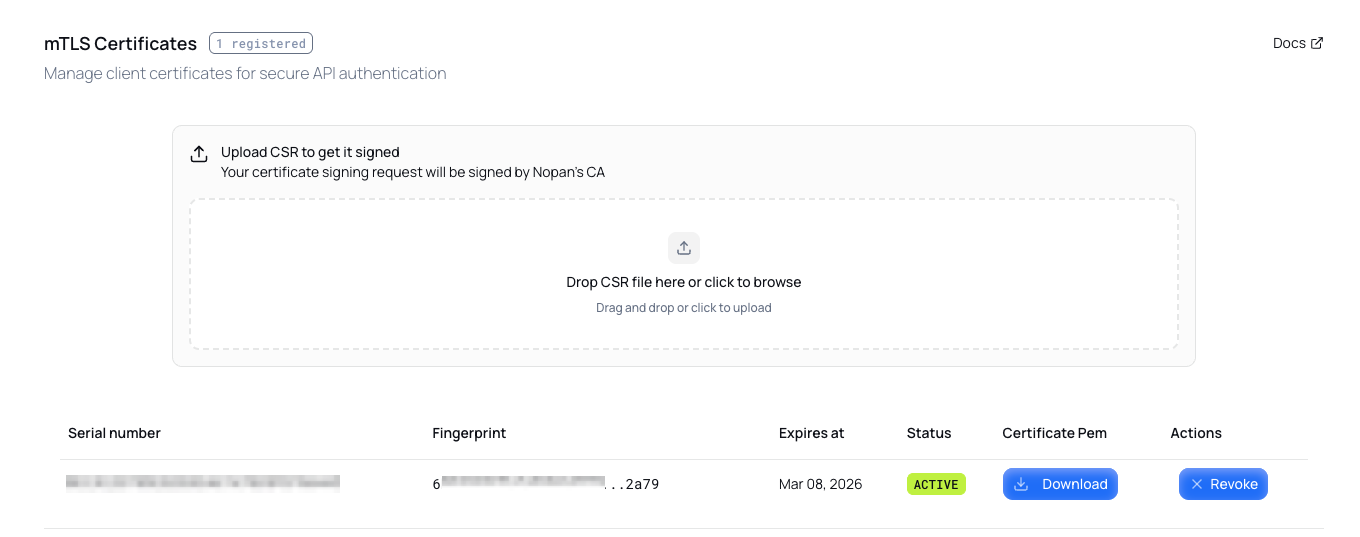

Receiving Your Certificate​

After approval, we’ll sign your certificate and return it in .pem format for immediate use. You will receive your signed client certificate as client-cert.pem.

tip

Don't store your private keys un-encrypted at rest, convert the key certificate into a password‑protected PKCS#12 container after you receive client-cert.pem:

openssl pkcs12 -export -out client-cert.p12 \
  -inkey client-key.pem -in client-cert.pem \
  -name "Nopan Client Certificate"

Validating Your Certificate​

After receiving your signed certificate from Nopan, it’s good practice to validate its contents.

Use the following command to inspect your certificate and verify important attributes like issuer, subject, validity period, and key usage:

openssl x509 -in client-cert.pem -text -noout

Validate:

  • Subject: confirms your identity fields (e.g., CN)
  • Issuer: should show Nopan's certificate authority
  • Validity: ensure the certificate is within the expected time window
  • Public Key: confirms correct algorithm and size

Private Key and Certificate Matching

Run the following two commands to extract and hash the public key from both the private key and the certificate:

Hash comparison

openssl ec -in client-key.pem \
-pubout -outform DER | openssl dgst -sha256

openssl x509 -in client-cert.pem \
-pubkey -noout -outform DER| openssl dgst -sha256
tip

Both commands must produce identical SHA256 hashes.
