Reporting

Our reporting suite is designed for maximum transparency and ease of reconciliation. We provide detailed, granular data to give you complete visibility into every stage of the payment process.

Nopan provides four report types and flexible options for retrieving them depending on your operational needs:

  • Secure file transfer (SFTP)
  • Manual download through the merchant portal
  • Programmatic access through REST APIs
info

PGP encryption is supported for clients that require end-to-end confidentiality. This can be enabled on request and applied consistently across all delivery channels.

Report Types​

Nopan provides four report types, each serving a distinct reconciliation and auditing purpose:

Report Type
Purpose
Covers
Transaction Details
Full audit trail of all transactions with their last lifecycle status.
Per-transaction outcome, event type, and timestamps
Fee Details
Per-transaction and non-transaction fee breakdown.
Processing, settlement, chargeback, periodic, and one-time fees
Settlement
Financial impact of settled transactions grouped into payout batches.
Gross values, fees, net amounts, and bank reconciliation data
Bank Addenda
High-level aggregate view for matching physical fund transfers to your bank statement.
Payout-level totals, transaction counts, and bank references

Transaction Details​

This report provides a full audit trail of all transactions, showing the last lifecycle status for each one. It outlines the final outcome of each payment:

  • Successful payments appear as a single entry.
  • Failed payments are represented by two entries - the last successful event that occurred and the final event indicating the failure.

For payments that failed, the successful event immediately preceding the failure is always included in the report.

Column
Purpose
Description
transaction_id
Allows to link the transaction event to incurred fees
Unique identifier for the transaction. Internally generated by Nopan
client_transaction_id
Identifies the transaction from the client side
Client format driven
processing_account_id
Identifies the specific processing account used for this transaction
Account that processed the payment. It can be defined as per the client, or internally generated
provider_id
Identifies the specific third-party payment provider that processed the transaction
Human readable identifier of the third-party payment provider
provider_transaction_id
Identifier assigned to the transaction by the payment provider
Payment provider format driven
amount
Gross value of the transaction
Expressed in non-decimal minor units
currency
Currency code in which the transaction was initiated and processed
Expressed as per ISO 4217 currency codes
status
Final determination of the payment's lifecycle stage outcome
Human readable, dependent on event_type. See Lifecycle concepts for possible values.
event_type
Specific lifecycle stage the payment reached
Human readable, dependent on payment method and integration path. See Lifecycle concepts for possible values.
event_time
Timestamp indicating when the recorded event_type occurred
Expressed as per ISO 8601 format in UTC timezone
info

For the full list of status and event_type values, see Lifecycle.

Fee Details​

This report provides a detailed, per-transaction breakdown of every fee incurred. It itemizes all processing, settlement, and chargeback fees applied to a transaction, as well as non-transaction fees such as periodic or one-time charges.

  • Transaction link: Ties each fee directly back to a transaction_id. For non-transaction-related fees, this value will not be present.
  • Fee type and origin: Identifies the fee_type and the party to whom the fee was applied - either Nopan or our payment provider - along with the precise fee amount in the processing currency.
Column
Purpose
Description
transaction_id
Links the fee entry back to the original transaction
Present only for transaction-related fees, otherwise empty
fee_type
Identifies the category of the charge
Can be PROCESSING, SETTLEMENT, CHARGEBACK, PERIODIC, or ONE_TIME
applied_by
Determines which party levied the fee
Can be Nopan or a third-party provider
fee_amount
Value of the individual fee component
Expressed in non-decimal minor units
currency
Currency code in which the fee was applied
Expressed as per ISO 4217 currency codes
processing_account_id
Identifies the specific processing account
Account that processed the payment. It can be defined as per the client, or internally generated
payout_id
Links the fee to the payout batch
Ties the fee to the settlement group for bank reconciliation

Settlement​

This report shows how transactions are grouped into payouts and provides the financial impact of settled transactions, refunds, and chargebacks within a specific payout batch.

  • Payout grouping: The payout_id links all transactions settled in the same batch.
  • Financial breakdown: Exposes the original gross_debit (or gross_credit for refunds), individual fees applied by Nopan and the provider, and the resulting net_debit or net_credit.
  • Reconciliation link: The bank_reference and settlement_date ensure you can match net totals with the funds transferred to your bank.
info

Non-settled, failed, or incomplete transactions do not appear in the settlement report.

Column
Purpose
Description
processing_account_id
Identifies the specific processing account
Account that processed the payment
payout_id
Links the entry to the payout batch
Unique identifier for the settlement batch
transaction_id
Links the settlement entry back to the original transaction
Unique identifier for the transaction
provider_transaction_id
Identifier assigned by the payment provider
Payment provider format driven
client_transaction_id
Identifies the transaction from the client side
Client format driven
provider
Identifies the specific third-party payment provider
Human readable identifier of the third-party payment provider
settlement_date
Date the transaction was included in the payout batch
Expressed as per ISO 8601 format in UTC timezone
type
Type of event settled in this batch
Indicates if the entry is a PAYMENT_SETTLED, REFUND, or CHARGEBACK
processing_currency
Currency in which the transaction was initiated
Expressed as per ISO 4217 currency codes
gross_credit
Gross value of funds credited
Expressed in non-decimal minor units. Value based on processing_currency
gross_debit
Gross value of funds debited
Expressed in non-decimal minor units. Value based on processing_currency
exchange_rate
Rate applied to convert processing currency to settlement currency
Ratio between the processing_currency and the settlement_currency. Shown in major units, rounded to five decimal places at settlement time
settlement_currency
Currency in which the funds are settled
Expressed as per ISO 4217 currency codes
net_credit
Amount credited to client after deducting fees
Net amount credited after all Nopan and Provider fees are applied. Value based on settlement_currency
net_debit
Amount debited from client after deducting fees
Net amount debited after all Nopan and Provider fees are applied. Value based on settlement_currency
nopan_processing_fee
Processing fee applied by Nopan
Expressed in non-decimal minor units. Value based on settlement_currency
nopan_settl_fee
Settlement fee applied by Nopan
Expressed in non-decimal minor units. Value based on settlement_currency
nopan_chargeback_fee
Chargeback fee applied by Nopan
Expressed in non-decimal minor units. Value based on settlement_currency
provider_processing_fee
Processing fee applied by the third-party provider
Expressed in non-decimal minor units. Value based on settlement_currency
provider_settl_fee
Settlement fee applied by the third-party provider
Expressed in non-decimal minor units. Value based on settlement_currency
bank_reference
Ensures reconciliation of the bank transfer with the payout
Identifier for matching the payout batch to the bank statement

Bank Addenda​

This report provides the high-level aggregate view necessary for matching the physical transfer of funds to your bank statement. It offers a concise, one-line summary for each bank transfer (payout batch).

  • Payout summary: Shows the unique payout_id, the total transaction_count, the aggregate gross_total, the total fee_total deducted, and the final net_total transferred.
  • Bank matching: The bank_reference is the identifier that will appear on your bank statement, ensuring immediate, reliable reconciliation of the incoming transfer.
Column
Purpose
Description
payout_id
Unique identifier for the settlement batch
Ties the entry to the payout batch
bank_reference
Ensures reconciliation of the bank transfer with the payout
Identifier for matching the payout batch to the bank statement
settlement_date
Date the funds were prepared for transfer
Expressed as per ISO 8601 format in UTC timezone
transaction_count
Total number of transactions included in the batch
A count of all transactions (payments, refunds, chargebacks) in the batch
gross_total
Aggregate gross value of all transactions in the batch
Sum of the gross values of all transactions in the payout. Expressed in processing_currency, using exchange_rate in settlement reports
fee_total
Aggregate value of all fees deducted from the batch
Sum of all Nopan and Provider fees applied to the transactions. Expressed in settlement_currency using exchange_rate in settlement reports
net_total
Final aggregate amount transferred to the bank
The final net amount of the funds transfer. Expressed in settlement_currency using exchange_rate in settlement reports
currency
Currency of the transfer
Expressed as per ISO 4217 currency codes
provider_id
Identifies the specific third-party payment provider
Human readable identifier of the third-party payment provider
processing_account_id
Identifies the specific processing account
Account that processed the payment

Retrieving Reports​

Reports can be filtered by processing_account_id, report type, and date range. Three delivery channels are available:

1. SFTP Delivery​

Reports are automatically deposited on the Nopan SFTP server at reports-sftp.nopan.com, organized by contractual entity:

outbound/{entity_id}/{year}/{month}/{day}/
  • Access is scoped per directory - each client can only navigate their own entity folder.

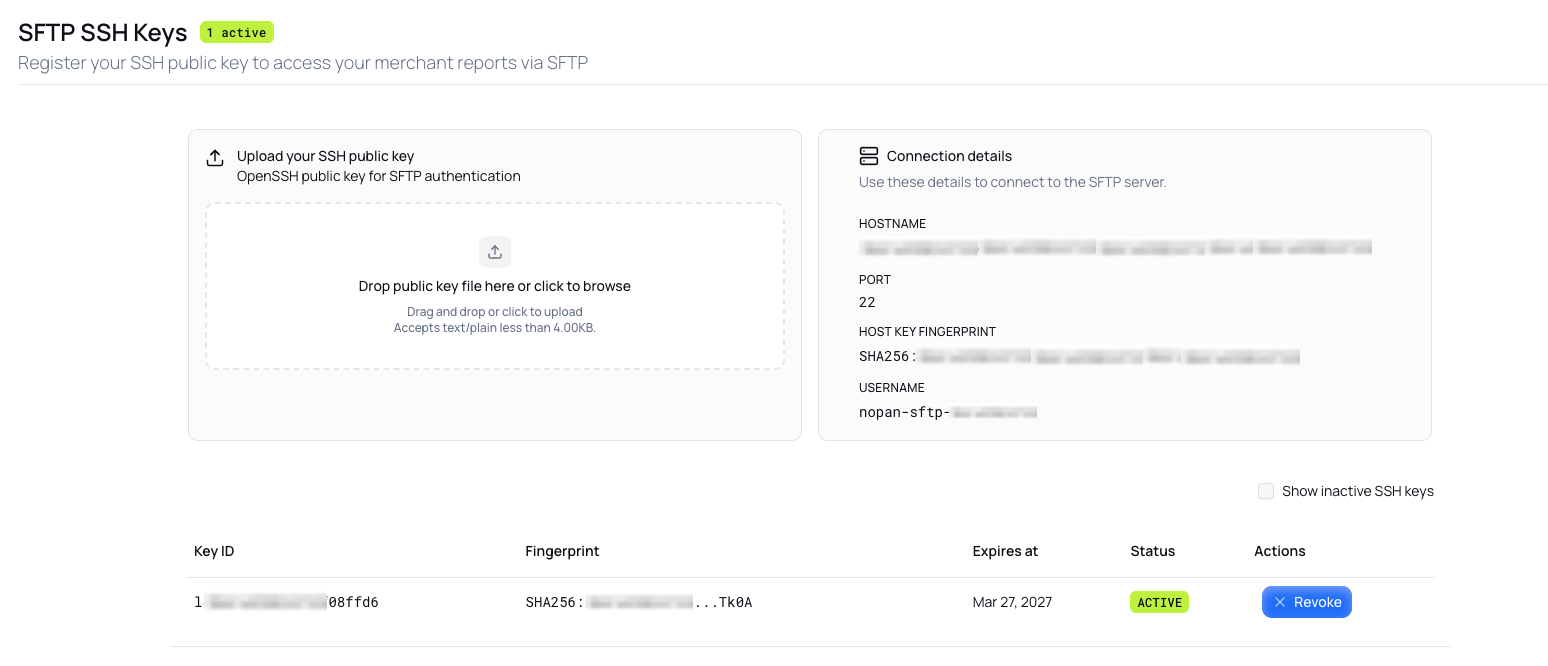

  • Authentication requires a key pair and specific credentials (username and password).
tip

PGP encryption can be enabled so that each file is encrypted with your public key before delivery.

2. Merchant Portal​

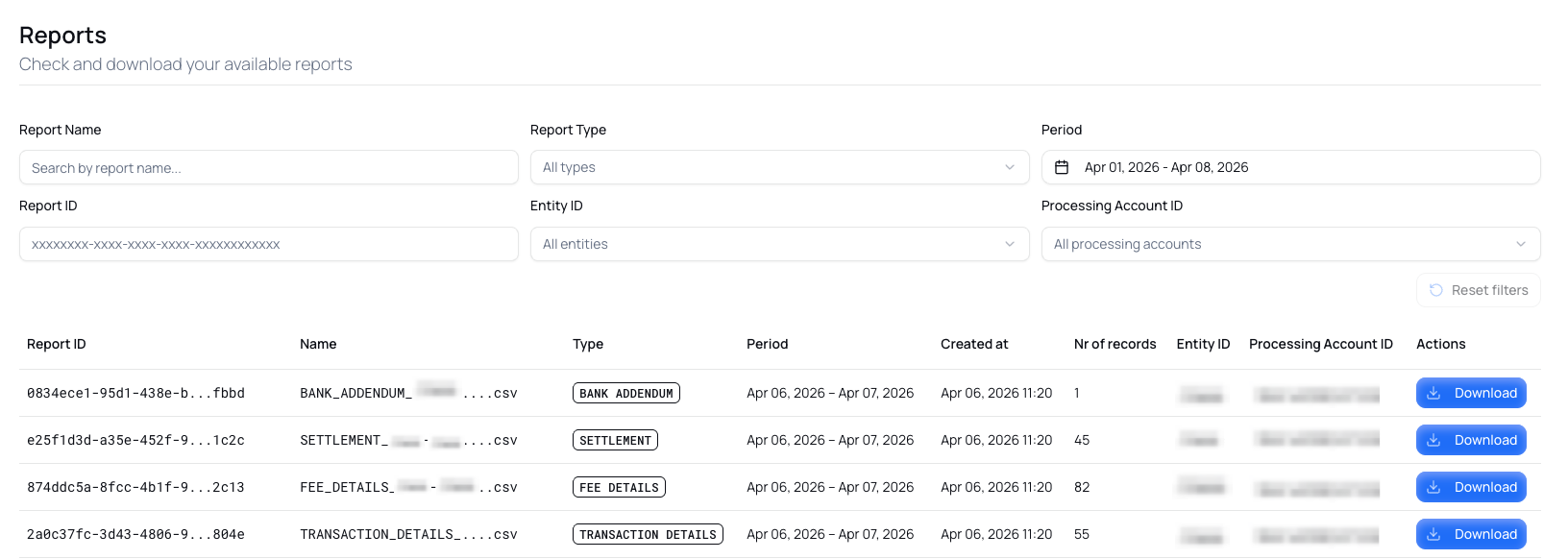

Log into the Nopan Merchant Portal to view, filter, and download available reports. You can filter by processing account, report type, and date range directly from the UI.

This is useful for finance teams or ad-hoc reporting needs.

3. REST API​

Reports can be retrieved programmatically through the Reports API, enabling full automation.

List reports:

GET /reports?type=TRANSACTION_DETAILS&processing_account_id=<id>&from=2025-08-01&to=2025-08-31
Authorization: Bearer <access-token>

Download a report:

GET /reports/{reportId}/download
Authorization: Bearer <access-token>
tip

Filter by type, processing_account_id, and date range (from / to) to scope the result set.

info

Authentication is handled the same way as other Nopan APIs: with mTLS and access tokens.

Optional : PGP Encryption​

Nopan supports optional PGP encryption for clients requiring data-at-rest confidentiality outside TLS.

  • Your public key must be registered with Nopan in advance.
  • Encrypted reports will carry the .pgp file extension.
  • Reports can still be delivered unencrypted if your systems operate inside a controlled environment.

Example decryption:

gpg --output report.csv --decrypt report.csv.pgp

Error Handling​

When retrieving reports, you may encounter errors:

Scenario
HTTP Status / Error
Recommended Action
Report not found (wrong date, type, or ID)
404 Not Found
Verify that the report type and date combination exists.
Unauthorized API request
401 Unauthorized
Ensure a valid access token is provided.
SFTP connection refused
-
Check credentials and network access to reports-sftp.nopan.com.
Decryption failure
-
Confirm that your PGP key matches the one registered with Nopan.
warning

Never process financial data or trigger business logic on unverified or corrupted reports.
